SC UPS
Falcon’s SC On-line UPS protects network and server loads with true double-conversion power and zero transfer during outages. Convertible rack/tower design, easy LCD. >90% efficiency with 0.99 PFC, tight ±1–2% regulation, and programmable 50/60-Hz frequency-converter mode. Built-in USB/RS-232 with optional SNMP/HTTP. Available in 700 VA–3 kVA, 120/230 Vac models for clean, stable power
Products
SC Rackmount UPS
If there is a description it goes here. Otherwise this should be deleted.
- SG700RM-1SC
- SG1KRM-1SC
- SG1.5KRM-1SC
- SG2KRM-1SC
- SG3KRM-1SC
SC Tower UPS
If there is a description it goes here. Otherwise this should be deleted.
- SG700-1SC
- SG1K-1SC
- SG2K-1SC
- SG3K-1SC
- SG1.5K-1SC
Key Features
Topology & Output
True on-line with 0 ms transfer; tight regulation (±1% utility, ±2% battery); programmable 50/60-Hz frequency-converter mode.
Output Choices
User-programmable voltages: 100/110/115/120 Vac (120-V models) or 208/220/230/240 Vac (230-V models); 50/60 Hz auto-tracking or fixed.
Input & Efficiency
Wide input windows (90–150 Vac or 180–300 Vac); PFC 0.99; >90% typical efficiency; EN-61000-4-5 surge suppression.
Batteries & Runtime
5-year, maintenance-free sealed VRLA; example runtimes 8/18 min (700 VA) and 3/9 min (3 kVA); 4 hrs to 90% recharge; extended runtimes available.
Monitoring & Comms
LCD status, audible alarms; USB, RS-232, EPO standard with bundled UPSilon software; optional SNMP/HTTP and dry-contact card.
Agency Approvals
UL 1778, FCC Class A (120-V models); CE (230-V models).
Operating Environment
0–40 °C operation; -10–50 °C storage; 10–90% RH (non-condensing); <55 dBA noise.
Form Factor
Convertible rack/tower design with rotatable LCD; compact 2U rackmount options.
Battery Options & Chargers
Battery Options
SC Rackmount VRLA
- SGCB-1S9-24V-1NC
- SGCB-1S9-36V-1NC
- SGCB-1S9-48V-1NC
- SGCB-1S9-72V-1NC
SC Tower VRLA
- SGBT-1S9-24V-1NC
- SGBT-1S9-36V-1NC
- SGBT-1S9-48V-1NC
- SGBT-1S9-72V-1NC
Battery Chargers
SC Rackmount & Tower Model Charger
- SGSC-CHGR-U
Accessories & peripherals
Communications
For all SSG Rackmount & Tower ModelsUPS Remote Management Card
Compatible with SC and FN2 UPS ModelsDownload Datasheet
Applications
Falcon’s UPS can be found in various types of Data Centers.
Hyperscale / Cloud
Enterprise

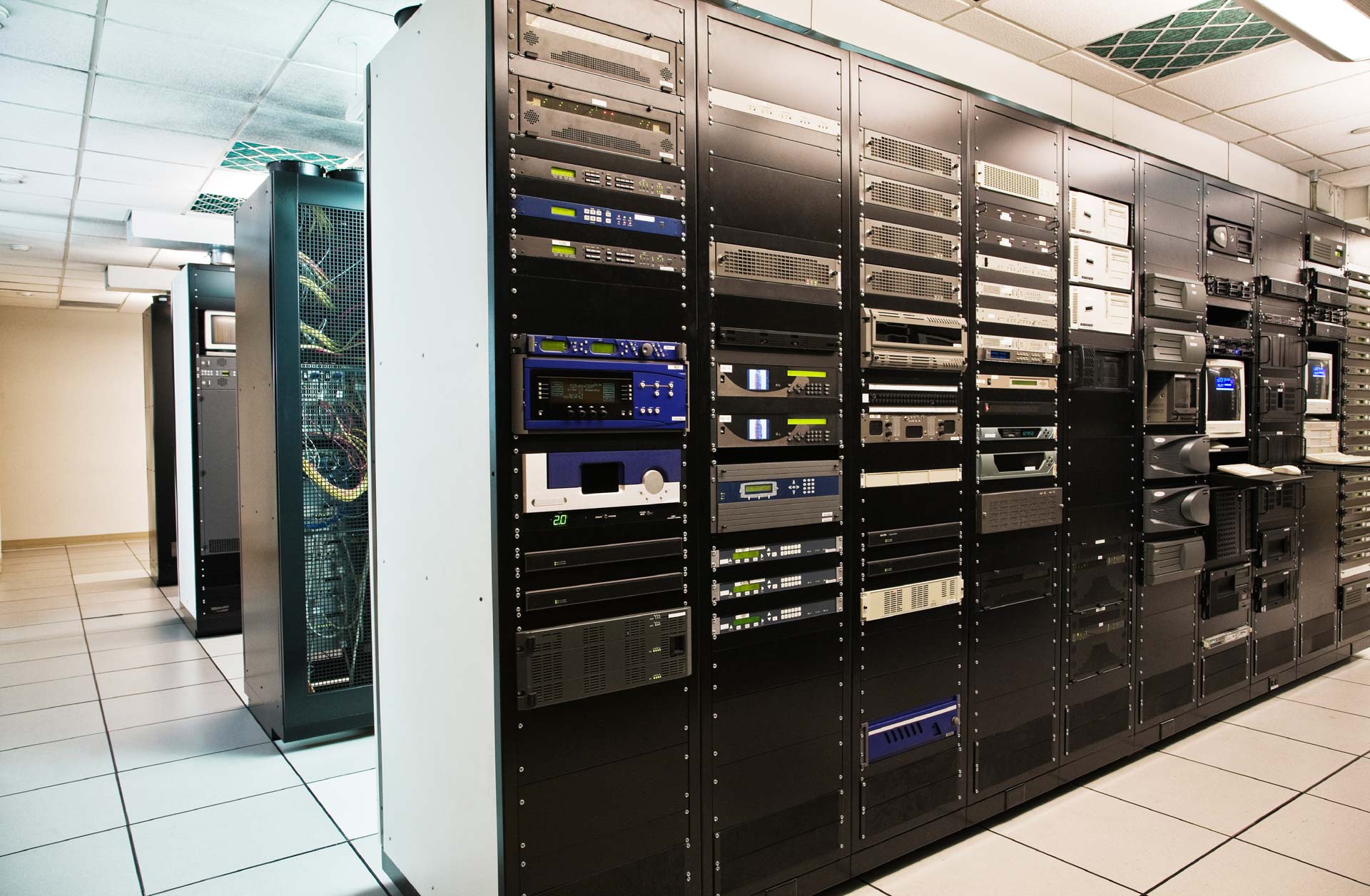

Edge / Micro
Modular / Containerized
Telecom CO / Network PoP
HPC / AI Compute
Need a custom solution?
Tell us about your project and we can design a UPS that fits your needs?
